Multi-Stage Genomic Pipeline

Using 1,300 CPUs and <100 lines of code.

In this example we:

• Download raw Illumina genomic-sequencing data from this NCBI experiment.

• Call and align each sample with a human reference genome.

• Combine samples into a single large .BED file, then convert to PGEN/PVAR/PSAM files.

This is a typical workflow to prepare Illumina sequencing data for downstream analysis.

Step 1: Boot some VMs

In the "Settings" tab we select the hardware, container image, and quantity of VM's we want. Then hit ⏻ Start on the homepage!

Here we boot 13, 80-CPU VM's, these VM's delete themself after 15min of inactivity. We also specify a custom docker image: jakezuliani/idats_to_pgen:latest This image has bcftools, PLINK, and PLINK2 installed, this is the image our code will run inside.

Once our machines are have booted, we can call remote_parallel_map !

Step 2: download prerequisite data

This code downloads the reference genome, and BPM / EGT files then saves it all to ./shared. This directory is network linked to a Google Cloud Storage bucket using GCSFuse.

Imports and URL definitions

import io
import gzip
import zipfile
import requests
import subprocess
from shutil import move
from pathlib import Path
import pandas as pd
from burla import remote_parallel_map

def _run_cmd(cmd: str, print_output=False):
    kwargs = {} if print_output else dict(stdout=subprocess.PIPE, stderr=subprocess.PIPE)
    process = subprocess.run(cmd, shell=True, text=True, **kwargs)
    if process.returncode != 0:
        print(process.stdout)
        print(process.stderr)
        raise subprocess.CalledProcessError(process.returncode, cmd)

# urls
SAMPLE_INFO_URL = "https://storage.googleapis.com/burla-demo-data/genomic_sample_info.csv"
REF_GZ_URL = "ftp://ftp.1000genomes.ebi.ac.uk/vol1/ftp/technical/reference/human_g1k_v37.fasta.gz"
REF_FAI_URL = "ftp://ftp.1000genomes.ebi.ac.uk/vol1/ftp/technical/reference/human_g1k_v37.fasta.fai"
illumina_base_url = "https://webdata.illumina.com/downloads/productfiles/global-screening-array/v1-0"
BPM_URL = f"{illumina_base_url}/infinium-global-screening-array-v1-0-c1-manifest-file-bpm-build37.zip"
CLUSTER_URL = f"{illumina_base_url}/infinium-global-screening-array-v1-0-c1-cluster-file.zip"
# filepaths
REF_PATH = Path("shared/idat_to_pgen_pipeline/human_g1k_v37.fasta")
REF_GZ_PATH = REF_PATH.with_suffix(".fasta.gz")
REF_FAI_PATH = REF_PATH.with_suffix(".fasta.fai")
BPM_PATH = Path("shared/idat_to_pgen_pipeline/GSA-24v1-0_C1.bpm")
EGT_PATH = Path("shared/idat_to_pgen_pipeline/GSA-24v1-0_C1_ClusterFile.egt")

def download_prerequisite_data(_):
    Path("shared/idat_to_pgen_pipeline").mkdir(parents=True, exist_ok=True)

    # download bpm / cluster files:
    if not BPM_PATH.exists():
        bpm_zip = zipfile.ZipFile(io.BytesIO(requests.get(BPM_URL).content))
        cluster_zip = zipfile.ZipFile(io.BytesIO(requests.get(CLUSTER_URL).content))
        bpm_zip.extractall("shared/idat_to_pgen_pipeline")
        cluster_zip.extractall("shared/idat_to_pgen_pipeline")

    # download / unzip reference genome:
    if not REF_PATH.with_suffix(".fasta.gz").exists():
        _run_cmd(f"wget --passive-ftp -O {REF_GZ_PATH} {REF_GZ_URL}", print_output=True)
        # uses old RAZF format, this makes it unzippable:
        _run_cmd(f"truncate -s 891946027 {REF_GZ_PATH}", print_output=True)
        _run_cmd(f"gunzip -f {REF_GZ_PATH}", print_output=True)

    # index reference genome for bcftools
    if not REF_FAI_PATH.exists():
        _run_cmd(f"samtools faidx {REF_PATH}", print_output=True)

    # return list of (sample_id, cell_line, replicate) tuples:
    df = pd.read_csv(SAMPLE_INFO_URL)
    return list(zip(df.sample_id, df.cell_line, df.replicate))

sample_info = remote_parallel_map(download_prerequisite_data, [None])[0]

After downloading this data, it appears in the Filesystem tab in the dashboard: (GCS)

Step 3: Download IDAT files for all 360 samples in parallel

This code uses 720 parallel 1-CPU containers to download the red & green IDAT file for each sample.

def download_single_idat_file(_id, cell_line, replicate, color):
    idat_path = Path(f"shared/idat_to_pgen_pipeline/{_id}/{cell_line}_{replicate}_{color}.idat")
    idat_path.parent.mkdir(parents=True, exist_ok=True)
    if not idat_path.exists():
        url = f"https://www.ncbi.nlm.nih.gov/geo/download/?acc={_id}"
        url += f"&format=file&file={_id}%5F{cell_line}%5F{replicate}%5F{color}%2Eidat%2Egz"
        with gzip.open(io.BytesIO(requests.get(url).content)) as f_in, idat_path.open("wb") as f_out:
            f_out.write(f_in.read())

sample_info_colored = [(*a, color) for a in sample_info for color in ("Grn", "Red")]
remote_parallel_map(download_single_idat_file, sample_info_colored)

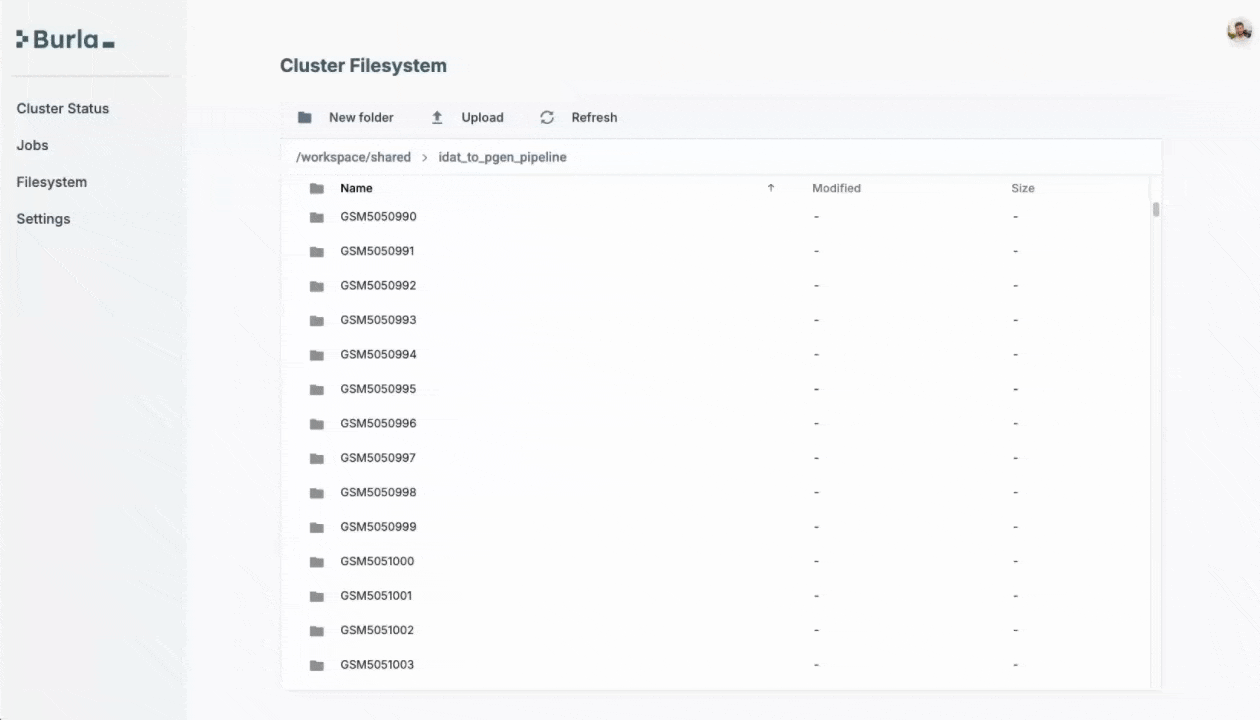

Folders with Red/Green IDAT's for each sample are now visible in the Filesystem tab:

Step 4: Call and align all samples in parallel

This code uses 360 parallel containers each with 8 CPUs and 32G of RAM. For each pair of IDAT files this code:

• Performs base calling and genotype clustering with bcftools +idat2gtc

• Aligns to a reference genome with bcftools +gtc2vcf

• Filters to retain only biallelic variants with bcftools view -m2 -M2

• Converts the VCF into PLINK BED, BIM, and FAM files using plink

def convert_idats_to_plink_bed_format(_id, cell_line, replicate):
    gtc_path = Path(f"shared/idat_to_pgen_pipeline/{_id}/{cell_line}_{replicate}.gtc")
    vcf_path = gtc_path.with_suffix(".vcf")

    # Convert green & red IDAT to single GTC
    _run_cmd(f"bcftools +idat2gtc --bpm {BPM_PATH} --egt {EGT_PATH} --idats shared/idat_to_pgen_pipeline/{_id}", print_output=True)
    move(f"{cell_line}_{replicate}.gtc", gtc_path)

    # Convert GTC to VCF
    _run_cmd(f"bcftools +gtc2vcf {gtc_path} -b {BPM_PATH} -e {EGT_PATH} -f {REF_PATH} -o {vcf_path} --do-not-check-bpm", print_output=True)

    # Filter VCF, only keep biallelic sites
    filtered_vcf_path = vcf_path.with_suffix(".temp_filtered.vcf")
    _run_cmd(f"bcftools view -m2 -M2 -o {filtered_vcf_path} {vcf_path}", print_output=True)
    filtered_vcf_path.rename(vcf_path)

    # Convert VCF to BED
    _run_cmd(f"plink --vcf {vcf_path} --out {vcf_path.with_suffix('')} --const-fid 0, --make-bed --allow-extra-chr --keep-allele-order", print_output=True)

remote_parallel_map(convert_idats_to_plink_bed_format, sample_info, func_cpu=8)

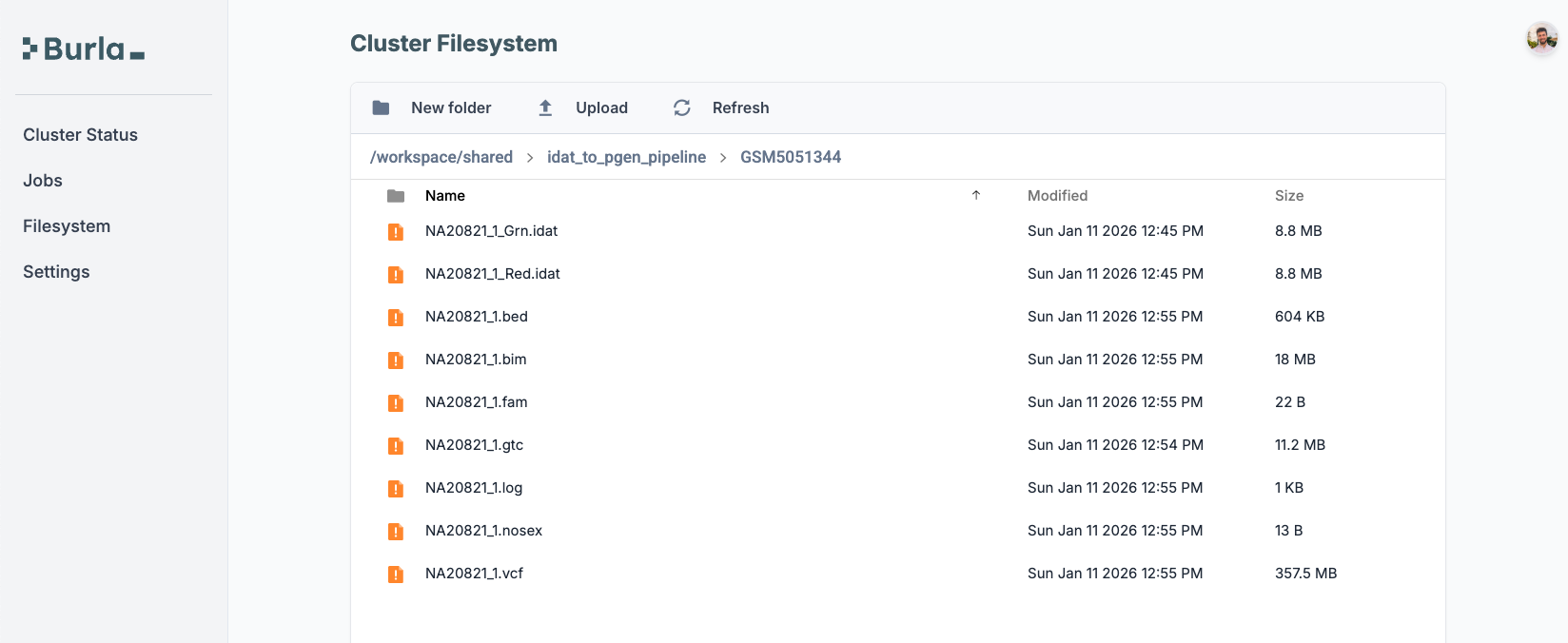

Each sample's folder now contains output from the above commands:

Step 5: Merge samples into a single PGEN/PVAR/PSAM file.

This code uses a single container with 80 CPUs and 320G of RAM.

MERGED_PATH = "shared/idat_to_pgen_pipeline/merged"

def combine_bed_files_into_pgen_file(sample_info):
    # Merge bed files into one big bed file
    mergelist = [f"shared/idat_to_pgen_pipeline/{_id}/{cl}_{r}" for _id, cl, r in sample_info]
    mergelist_path = Path("merge_list.txt")
    mergelist_path.write_text("\n".join(mergelist))
    cmd = f"plink --bfile {mergelist[0]} --merge-list {mergelist_path} --out {MERGED_PATH} --allow-extra-chr --biallelic-only strict"
    _run_cmd(cmd, print_output=True)
    # Convert merged BED to PGEN using plink2
    _run_cmd(f"plink2 --bfile {MERGED_PATH} --out {MERGED_PATH} --make-pgen --allow-extra-chr", print_output=True)

_ = remote_parallel_map(combine_bed_files_into_pgen_file, [sample_info], func_cpu=80, func_ram=320)

After running the PGEN/PVAR/PSAM files are available for download in the Filesystem tab! (GCS)

Want to run this code yourself?

This demo is available as a Google Colab notebook here: https://colab.research.google.com/drive/1lEbeGOoowZ9FKA9yctziWyhH6TvLuxTi?usp=sharing

The notebook contains instructions to get Burla up and running as well as run the demo. Don't hesitate to email me ([email protected]) if you get stuck! Thank you for trying Burla!
